ICECASA Commercial 540 lbs/24H Modular Ice Maker Machine Head Full Cube | Restaurant | ICE-M500F

Commercial Ice Maker Head for Restaurants & Bars — 540 lbs a Day, Fits Your Existing Bin

For $1,600+ less than a big-brand 500-lb head — and already EPA-compliant on R290. ETL Certified, 6-Year compressor warranty.

Your bin still works — your old ice head is the bottleneck. The ICE-M540F modular head drops onto your existing compatible bin and upgrades production to 540 lbs of slow-melting full-cube ice every 24 hours. No bin replacement, no extra floor space, no R404a-era headaches: it runs on R290, already compliant with the 2026 EPA rules.

Direct from the manufacturer — no dealer markup. A big-brand 500-lb ice maker head alone runs $3,000+. The ICE-M540F head (ICE-M500F) delivers 540 lbs a day for $1,600+ less — and swaps in already compliant with the 2026 EPA refrigerant rules, with parts that ship from U.S. warehouses instead of overseas.

Comparing against a $400 countertop machine instead? Those make 24–30 lbs a day, melt fast, and aren't rated for commercial duty. The ICE-M540F is 18–22× the output — commercial equipment, not a kitchen gadget.

Key Specifications

Perfect For

Frequently Asked Questions

Is this machine actually commercial-grade?

Yes. The ICE-M540F is ETL Certified — the nationally recognized electrical-safety certification (equivalent to UL) accepted across commercial food service — with an NSF-compliant design, easy-to-sanitize stainless steel exterior, and polyethylene interior built for 24/7 continuous duty. It's the same build class you'd expect from machines costing far more.

Does this listing include the storage bin?

No — this listing is the machine head only. The 200 lbs bin is sold separately ($500), or you can order the complete system with the bin included ($1,900). If your operation already has a compatible bin, the head is all you need.

Will it fit my existing bin?

The ICE-M540F is a modular head designed to mount on compatible ice storage bins with a 22.2" × 22.2" top opening. If you're upgrading an existing setup, send us your bin model and we'll confirm compatibility before you order. Pairing it with our 200 lbs bin ($500) is a guaranteed match.

Is the refrigerant compliant with the 2026 EPA rules?

Yes — this is one of the big reasons to buy the ICE-M540F. It runs on R290, an EPA-approved natural refrigerant with a GWP of just 3.3, already compliant with the AIM Act technology transitions that took effect for commercial ice machines in 2026. If you're retiring an old high-GWP head, this is the drop-in upgrade that removes the phase-out question entirely.

What hookups does it need?

A standard water supply line to the head and a regular 115V outlet — it ships with a NEMA 5-15P plug and a 77-inch cord (980W, no special wiring required). The drain connects at the bin: a gravity drain (floor drain or lower drain point). If your layout has no low drain point, contact us before ordering. If you don't already have a water/drain rough-in, line it up with your plumber before delivery.

How much space does it need?

Footprint: 22.2" wide × 22.2" deep × 22.1" high for the head itself — it drops onto your existing bin's footprint (61.8" tall complete system with the bin). It's air-cooled, so plan at least 6" of clearance on the sides and back and 12" above the unit — standard breathing room for machines in this class.

How does delivery work?

Free shipping to the 48 contiguous states (Hawaii & Alaska excluded) from 4 U.S. warehouses (CA, TX, GA, NJ). The head (~98 lbs) ships freight on a pallet by carriers such as R+L, SAIA, and XPO — curbside delivery with liftgate service included free, so the pallet is lowered to the ground at no charge. The carrier will contact you to schedule delivery; have a staff member and a pallet jack ready on delivery day. Need inside delivery? Contact us and we'll quote the extra cost if available.

What does the warranty cover?

A 6-year compressor warranty (2 years full + 4 years parts) and 2-year labor & parts coverage, backed by U.S.-based support that responds within 12 hours. If something breaks, parts ship from a U.S. warehouse — not from overseas.

Will it really pay for itself?

Yes — see the math above. Against bagged ice at $10–20 per 100 lbs, an operation burning through 540 lbs a day breaks even in roughly 2–4 weeks, then saves $1,600–3,300 a month. That's before counting the value of never running out mid-service.

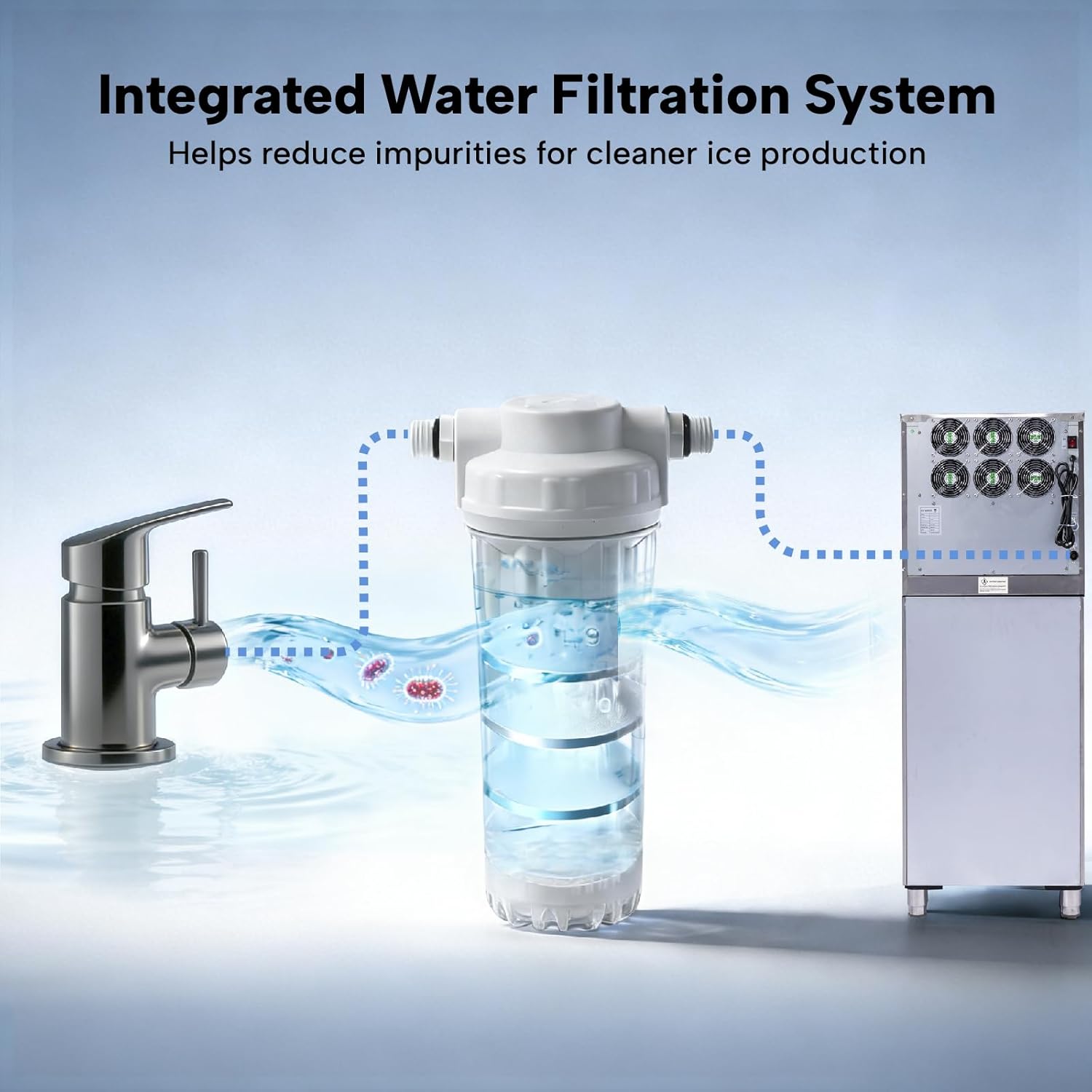

Do I need a water filter?

Recommended, not required. The Inlet Hose with Built-in Filter ($58) installs in minutes and keeps scale and sediment out of the machine — cheap insurance for the compressor and cleaner cubes.

What if I need a different size?

We carry machines for every volume — from 350 lbs up to this 540-lb head, plus complete systems with bins. Read the Commercial Ice Machine Buying Guide (2026) for sizing math — covers per seat, drink types, and peak-hour demand — or contact our U.S.-based support with your specs.

Warranty & Support

• 6-Year Compressor Warranty (2 years full + 4 years parts)
• 2-Year Labor & Parts Warranty
• 12-hour customer support response time — U.S.-based

Not sure what size ice maker you need? Read our Commercial Ice Machine Buying Guide (2026) — a 5-minute read on sizing, cube types, and certifications.
