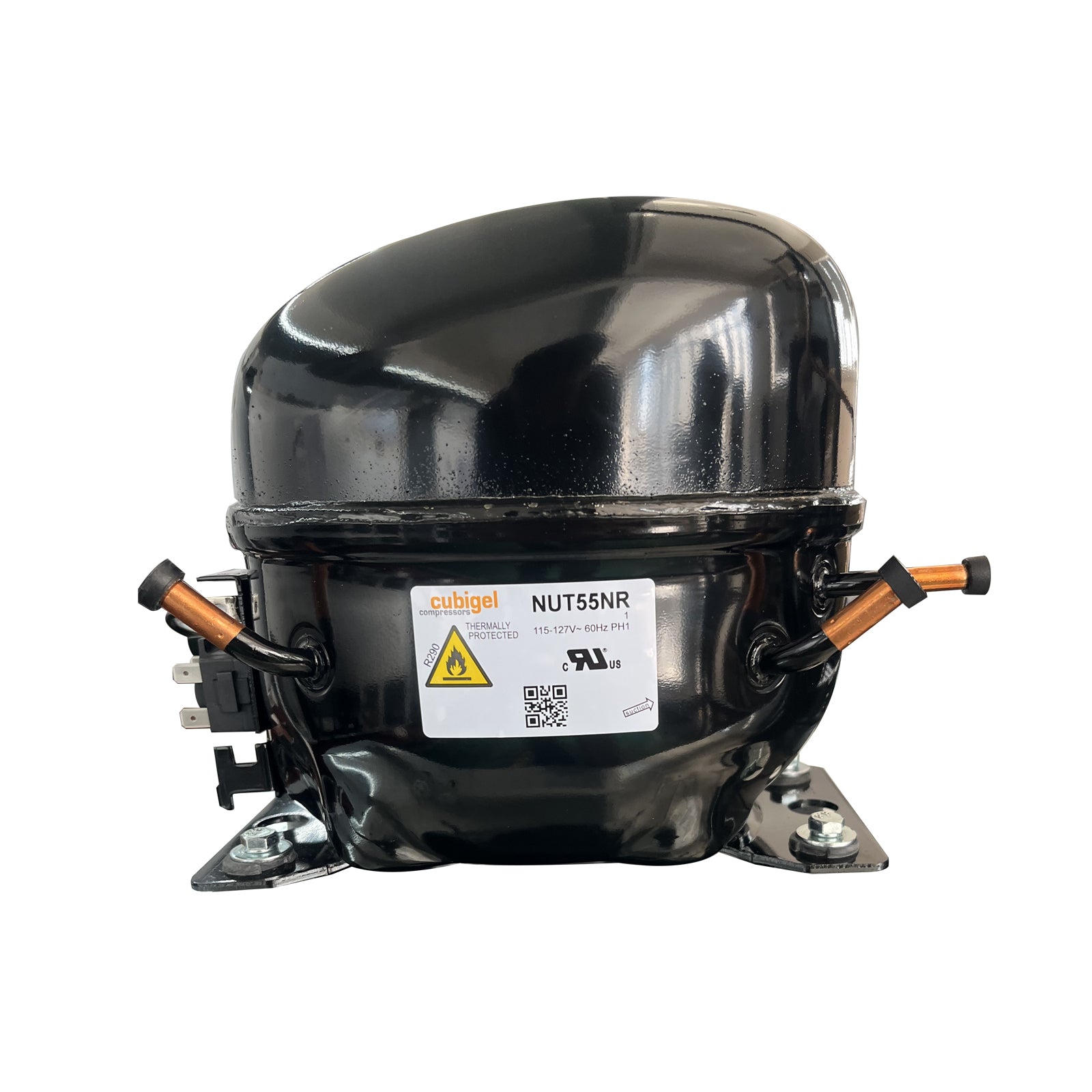

ICECASA Cubigel NUT55NR R290 Refrigeration Compressor – 1/3 HP LMBP 115V RSCR Motor

320W Cooling Capacity | COP 1.68 | ≤48dB(A) | POE Oil Pre-Charged | Model NUT55NR


✓ 1/3 HP LMBP compressor | R290 refrigerant | 115–127V~60Hz
✓ 320W cooling capacity | COP 1.68 W/W | 5.53cm³ displacement
✓ Ambient range: 50–109°F | Evaporating: –40–32°F
✓ Quiet operation ≤48dB(A) | Vibration ≤1.5m/s²
✓ POE oil (6.8 fl.oz) pre-charged | RSCR motor with 10µF run capacitor

The ICECASA Cubigel NUT55NR is a low-to-medium back pressure (LMBP) compressor engineered for commercial and residential refrigeration systems running on R290 refrigerant. Designed for reach-in refrigerators, freezers, vending machines, and display cabinets, it delivers consistent, energy-efficient cooling tested under ASHRAE LBP conditions. With a wide voltage tolerance of 98–140V and a condensing temperature rating of 149°F, it handles demanding environments without compromise.

The compact hermetic design comes with copper tubing connections (suction 0.256", discharge 0.193", process 0.256") and POE oil already pre-charged, simplifying installation. All electrical components are supplied separately for flexible wiring configurations. At just 20.9 lbs, it's straightforward to handle and mount in tight equipment spaces.

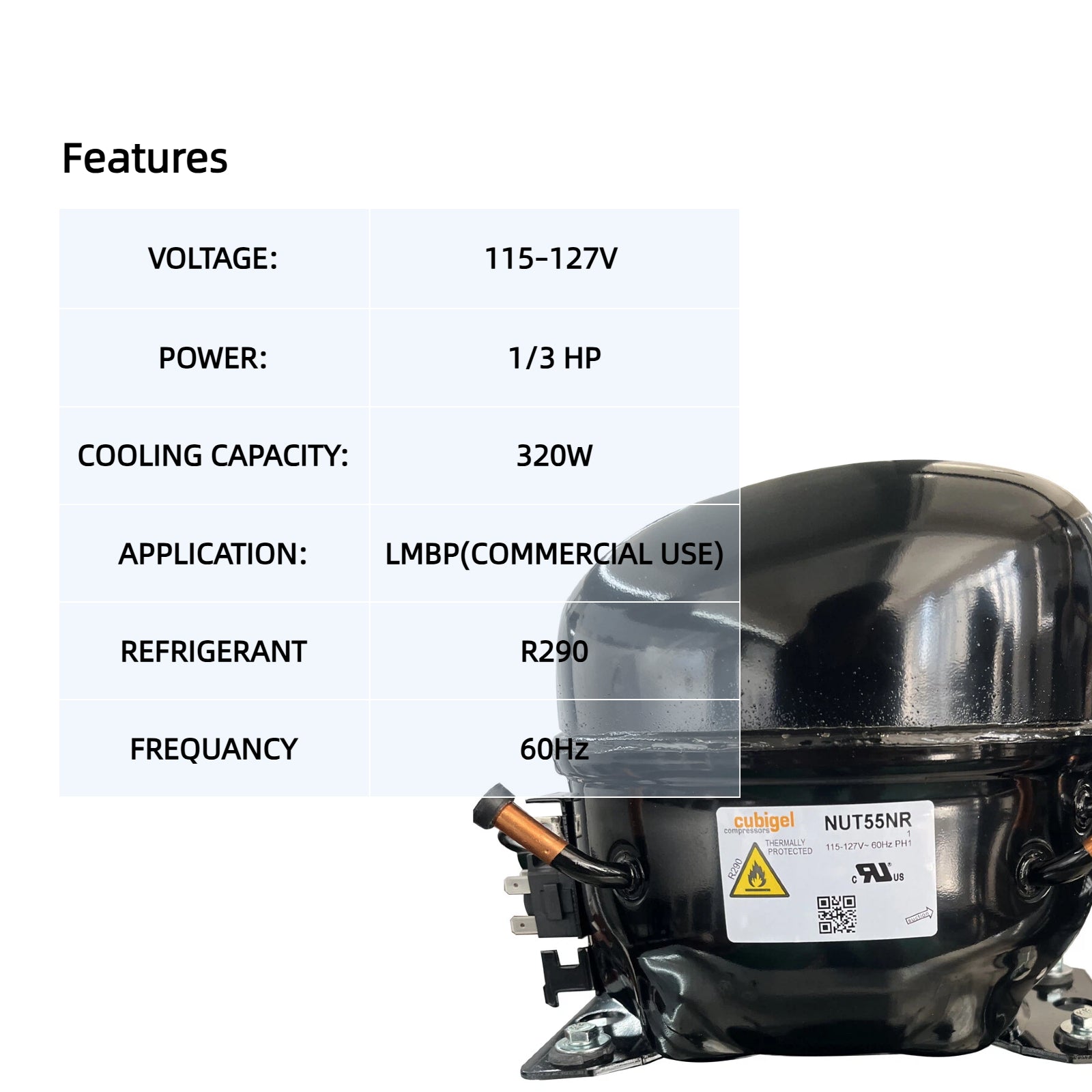

Key Specifications

  • Model: NUT55NR
  • Refrigerant: R290
  • Voltage: 115–127V~60Hz (operating range: 98–140V)
  • Motor Type: RSCR with 10µF run capacitor
  • Displacement: 5.53cm³ (0.337 in³)
  • Cooling Capacity: 320W

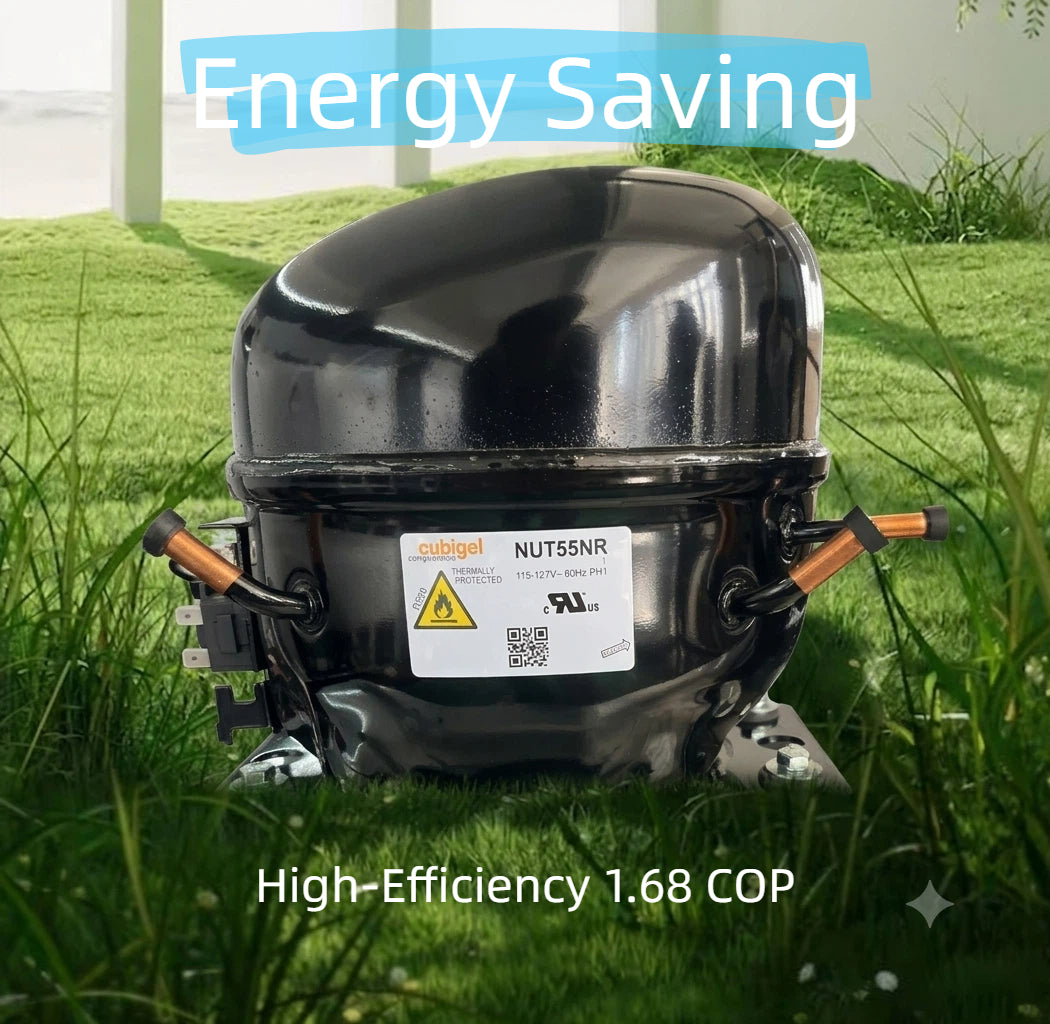

  • COP: 1.68 W/W
  • Ambient Temperature: 50–109°F
  • Evaporating Temperature: –40–32°F
  • Max Condensing Temp: 149°F
  • Shell Pressure Rating: 363 PSI

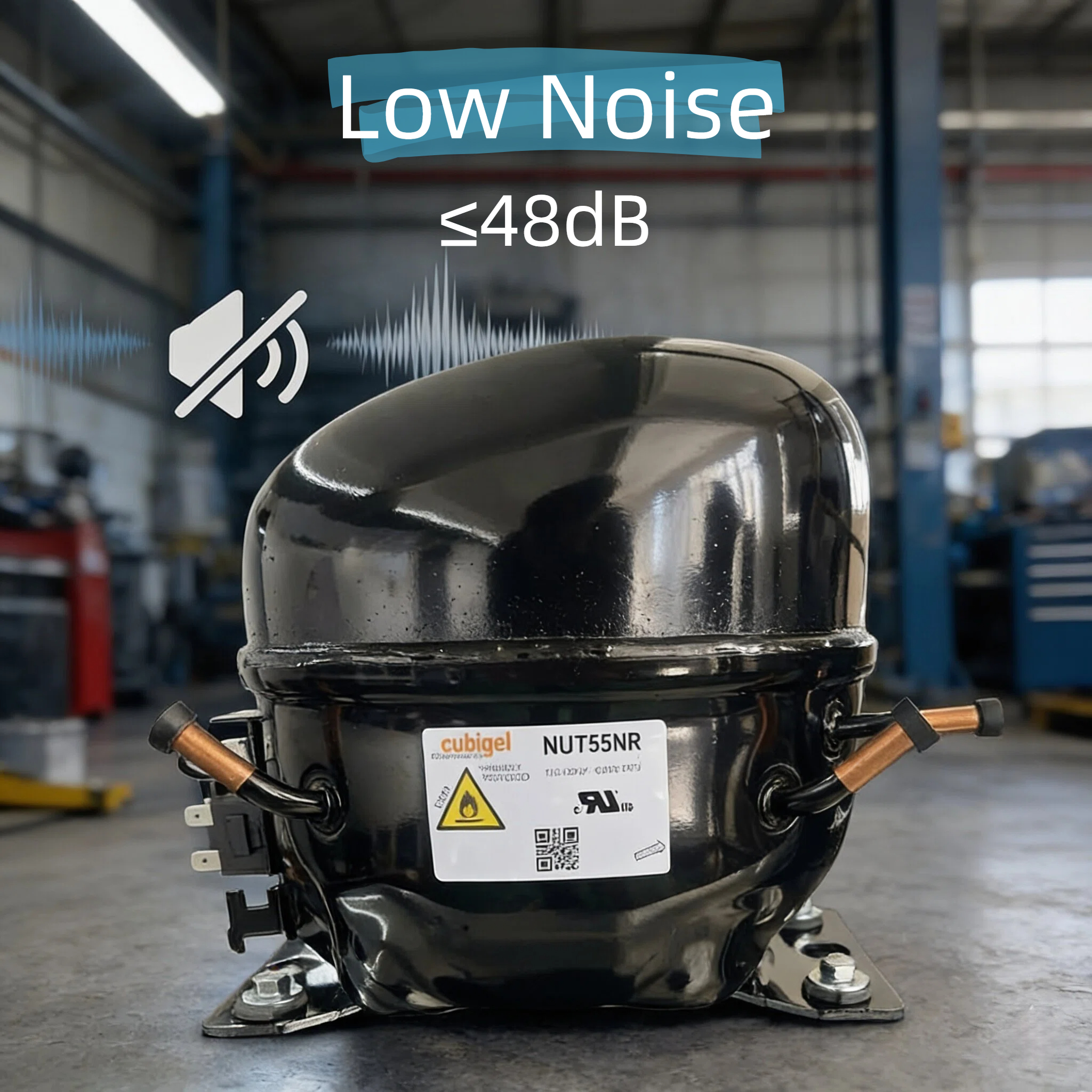

  • Noise Level: ≤48dB(A) | Vibration ≤1.5m/s²
  • Lubricant: POE oil, 6.8 fl.oz pre-charged
  • Weight: 20.9 lbs

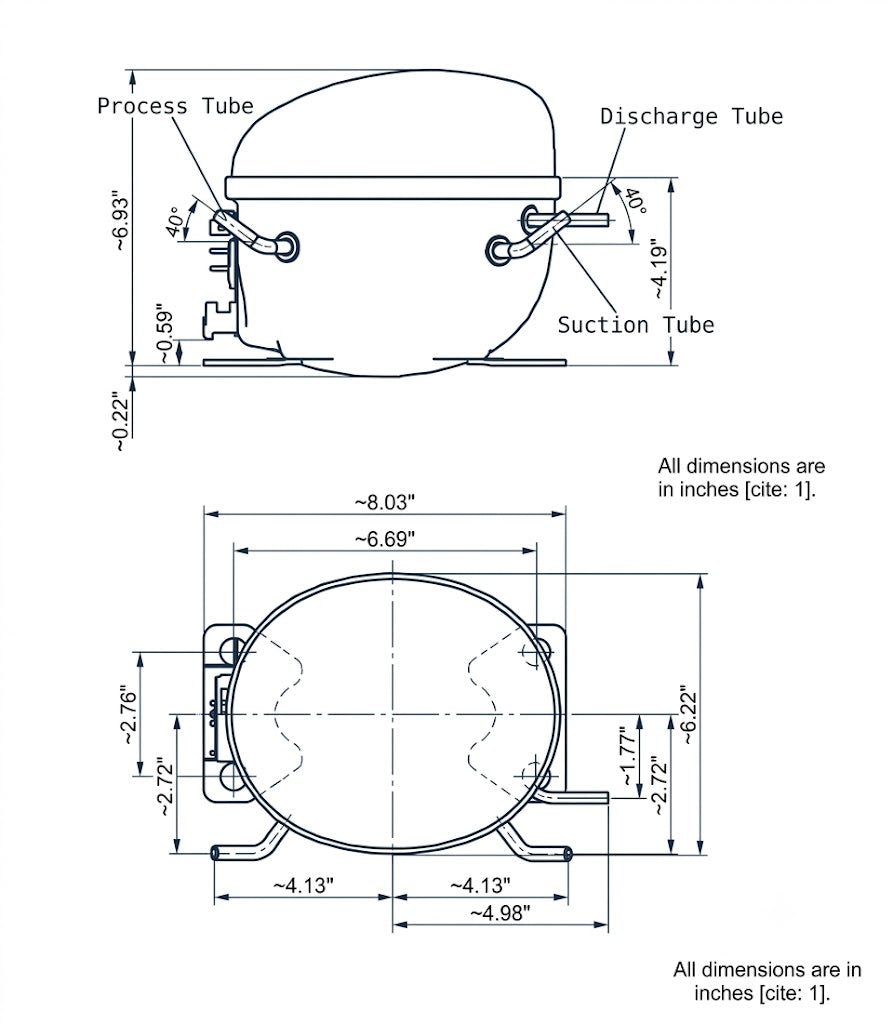

  • Tubing: Suction 0.256" | Discharge 0.193" | Process 0.256"

Compatible Applications

✓ Reach-in refrigerators and freezers
✓ Commercial display cabinets and merchandisers
✓ Vending machines
✓ Replacement compressor for R290 systems

Installation Notes

  • Transport and store upright; mount with tilt ≤5°
  • Ensure system pressure is below 112 PSI before starting
  • Wait at least 5 minutes between restarts
  • Store in a dry location; best used within 6 months of delivery
  • Electrical components not included — supplied separately for flexible installation
